Guide to Hydraulic Gantry Systems for Machinery Moving

What if you could lift a fifty tonne machine in a space where a mobile crane cannot even fit its boom? You probably recognise the stress of dealing with restricted overhead clearance or the eye-watering costs of removing building structures just to move equipment. It's understandable to feel anxious about the safety and stability of a heavy lift when you're working in tight corners. This is where hydraulic gantry systems become essential, offering a level of control that traditional methods simply cannot match in confined industrial environments.

This guide explains how these systems provide a safe, precise, and efficient lifting solution for heavy industrial machinery. You'll gain a clear understanding of gantry capabilities and safety benefits, including adherence to modern standards such as ISO 12480-5; 2026, whilst learning how to compare them against mobile cranes. We also provide a framework to help you choose a managed lifting service with confidence for your next complex relocation, ensuring your machinery is handled with professional care and technical expertise.

To ensure your heavy machinery is moved with precision and safety, you can rely on the expert services provided by Silver Knight Haulage & Machineries Ltd.

The role of hydraulic gantry systems in modern machinery moving

A hydraulic gantry is a portable lifting structure designed to move, lift, and position heavy loads with extreme precision. While a traditional Gantry crane often runs on fixed rails, these hydraulic versions use telescopic legs and headers to provide a flexible lifting frame. They've become the preferred choice for indoor factory plant relocation because they can be assembled around a machine in spaces where other equipment simply cannot reach. They turn impossible lifts into routine operations.

Lifting technology has evolved significantly from the days of manual jacks and basic pulleys. Modern machinery moving now relies on synchronised hydraulic gantry systems. These systems allow multiple lift points to move in perfect unison, which is vital when handling high value industrial assets like CNC machines or power generators. This synchronisation prevents the load from tilting, which could cause structural damage. It's a level of control that manual methods can never replicate, providing peace of mind during the most challenging projects.

Why gantries are essential for restricted access projects

In many industrial settings, overhead cranes are either non-existent or lack the capacity for a specific heavy lift. Mobile cranes are often physically impossible to use because they require huge amounts of vertical space to extend their booms and wide areas for their outriggers. Hydraulic gantry systems solve this problem by operating within low ceiling heights whilst maintaining high lift capacities. Because they sit directly over or around the load, you don't need to modify building structures or remove roofs to get your machinery in or out of the facility. This saves both time and significant structural repair costs.

The importance of professional equipment operation

Handling loads that weigh dozens of tonnes requires more than just the right hardware. Whilst some might consider simple equipment hire, opting for operated lifting equipment is significantly safer for complex moves. Professional operators understand how to manage the centre of gravity for heavy loads, which can shift unexpectedly during a lift. At Silver Knight, we provide a comprehensive managed service that includes technical site surveys and expert operation of our specialised machinery moving equipment. This ensures that every move is stable and controlled, backed by over 180 years of collective industry experience.

If you require a professional team to manage your next complex equipment move, contact the experts at Silver Knight Haulage & Machineries Ltd.

Technical advantages of telescopic hydraulic boom systems

The core of modern hydraulic gantry systems lies in their telescopic boom technology. Unlike fixed height frames, these booms use nested sections that extend or retract using internal hydraulic cylinders. This allows for variable lift heights, which is particularly useful when you need to lift a machine over an obstacle and then lower it into a tight spot. By using a four point lifting system, the weight is distributed evenly across four separate legs. This offers far superior stability compared to single point lifts, where the load is more prone to swinging or tilting. Understanding the differences in Mobile Gantries vs Cranes is helpful, as the gantry's fixed vertical lift path eliminates the radius issues associated with crane booms.

Precision is maintained through synchronised hydraulics. Advanced control systems ensure that each leg moves at the exact same speed, keeping the load perfectly level even if the weight isn't distributed symmetrically. This is crucial for sensitive machinery that could be damaged by even a slight tilt. For projects requiring horizontal travel, these systems are often mounted on rail tracks. This allows the entire gantry structure, with the load suspended, to move smoothly across the factory floor to its final destination.

Precision positioning for machinery installation

Final installations require millimetre accuracy. Hydraulic systems allow for micro adjustments in pressure, giving operators the ability to nudge a multi tonne machine into place with incredible accuracy. This is especially beneficial when placing equipment onto pre prepared foundations or bolting patterns. By achieving such high levels of precision, the risk of structural damage or misalignment during the recommissioning phase is significantly reduced. If you are planning a complex install, you can speak with our technical team to discuss your specific requirements.

Versatility across different load weights and sizes

One of the greatest strengths of these systems is their sheer versatility. Gantry legs can be positioned at various widths to accommodate oversized or odd shaped industrial equipment that wouldn't fit standard lifting frames. The technology is also highly scalable. Whether you are dealing with a 20 ton press or a massive 500 ton turbine, the configuration can be adjusted using different header beams and specialised rigging tackle. This flexibility makes them an ideal choice for a wide range of machinery haulage and relocation projects, regardless of the load's complexity or size.

To find out more about our comprehensive managed services, visit the Silver Knight Haulage & Machineries Ltd website.

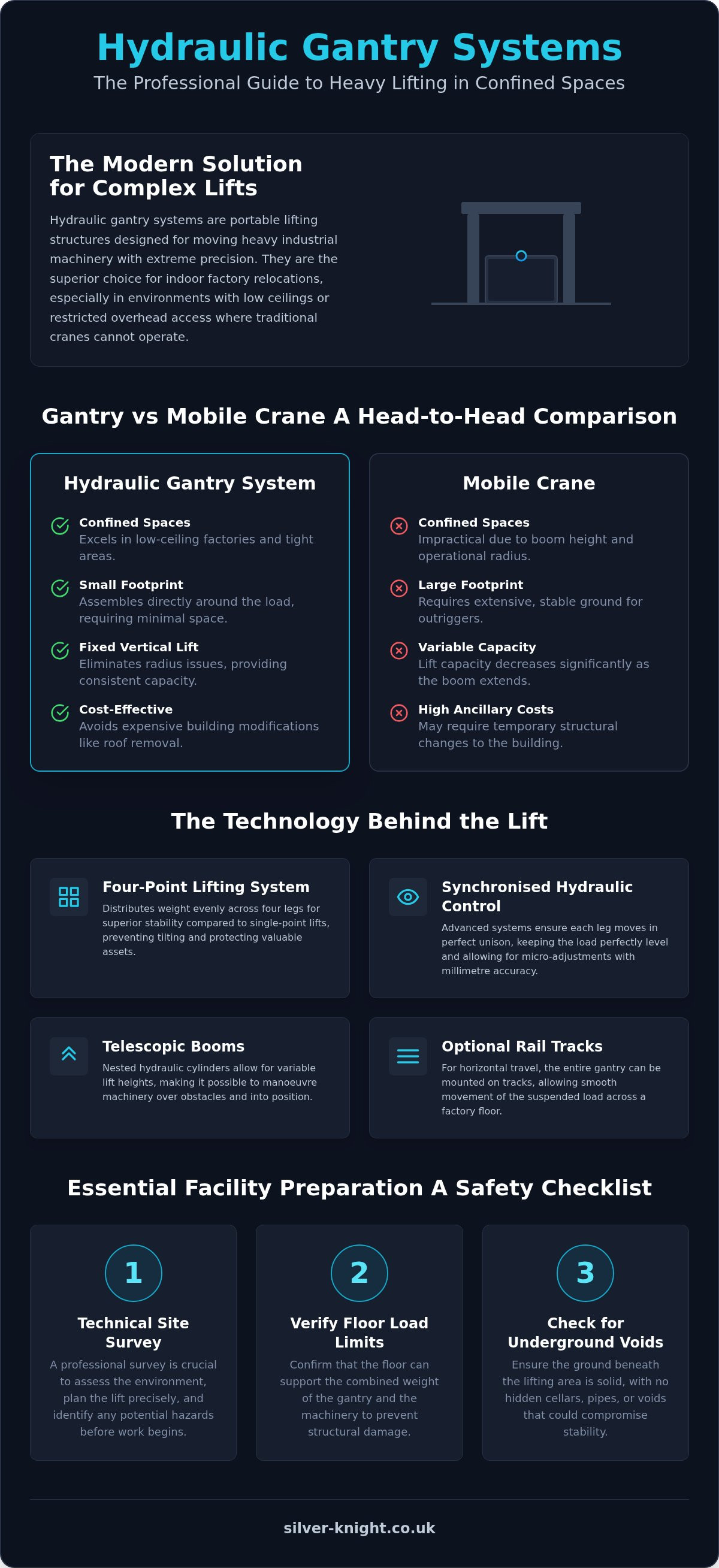

Deciding between hydraulic gantries and mobile cranes

Choosing the right equipment depends entirely on the environment of your project. A mobile crane requires a massive outrigger spread to maintain stability during a lift. This footprint often exceeds the available floor space in a busy factory, potentially halting other operations. In contrast, hydraulic gantry systems occupy a much smaller footprint, sitting directly over or around the load. Logistics also differ significantly; whilst a crane arrives ready to lift, it may require expensive road closures or structural modifications to the building. Gantries are transported in sections and assembled on site, making them easier to move through standard industrial doorways and narrow aisles.

Space requirements and overhead clearance factors

Mobile cranes need significant vertical room to extend their boom and manage the radius of a lift. If your facility has low ceilings or overhead obstructions like pipework, ventilation ducts, and lighting, a crane simply will not work. Gantries excel in these environments because of their compact height. They can be built around the machine in situ, working comfortably beneath existing infrastructure. This eliminates the need to dismantle factory services or remove roof sections just to gain a few extra feet of clearance, saving you substantial time and money.

Operational safety in confined industrial environments

Safety is paramount in machinery moving, especially when working near other high value assets. A crane lift involves a swinging load, which can be difficult to control in tight spaces where wind or slight movements can cause a pendulum effect. Hydraulic gantry systems provide a strictly vertical lift, which is far more predictable and stable. This makes them the preferred choice for factory clearance and decommissioning tasks where precision is non negotiable. For even tighter spots, we often combine these with specialised lifting and versa lift systems to ensure every corner of the plant is accessible.

There is also the critical matter of air quality. Most mobile cranes run on diesel engines, which create fumes that are dangerous in enclosed spaces without expensive ventilation systems. Many gantry systems use electric or clean hydraulic power units. This makes them much better for indoor use, protecting the health of your staff and maintaining a clean working environment. When you factor in the cost of not having to modify your building, the gantry often proves to be the most cost effective solution for indoor industrial projects.

To ensure your industrial move is planned with absolute precision, you should partner with the specialists at Silver Knight Haulage & Machineries Ltd.

Preparing your facility for a hydraulic gantry lift

Successful machinery moving begins long before hydraulic gantry systems arrive at your gates. A comprehensive technical site survey is the first essential step in the planning process. This survey allows engineers to identify potential hazards that might not be visible on a standard floor plan. We look for underground services, drainage pipes, or hidden voids that could compromise the floor's integrity when under load. All findings are then used to create detailed health and safety documentation, including Risk Assessments and Method Statements (RAMS). These documents act as a blueprint for the entire operation, ensuring every member of the team understands their role and the safety protocols in place.

Clients play a vital role in the preparation phase. You must ensure that all access routes are clear of obstructions and that the work area is fully prepared for the gantry assembly. This includes checking that doorways are wide enough and that there is sufficient vertical clearance for the gantry headers to be positioned. Proper preparation reduces the risk of delays and ensures the lifting team can begin work immediately upon arrival.

Essential ground load bearing checks

The pressure exerted by gantry legs on a factory floor can be immense, often concentrated on four relatively small points. It is critical to calculate this pressure against the known specifications of your floor. If the floor cannot support the point load, we use heavy steel spreader plates or timber matting to distribute the weight across a larger surface area. Ignoring these ground bearing checks is dangerous; it can lead to floor subsidence or the equipment becoming unlevel during a critical lift. Always verify your floor's load capacity with a structural engineer if the original building records are unavailable.

Coordinating with other onsite services

A heavy lift rarely happens in isolation. You must coordinate with your internal maintenance teams to ensure all electrical, pneumatic, and hydraulic connections are decommissioned and safely tucked away before the move begins. It is also your responsibility to manage site traffic and establish pedestrian exclusion zones. This prevents unauthorised personnel from entering the lift area, which is vital for maintaining a safe working environment. For those requiring a fully managed approach, our factory relocation service provides end to end project management to handle these complex logistics for you.

If you are unsure about the load bearing capacity of your facility or need help planning a complex lift, contact our technical team for a professional site assessment.

To learn more about our full range of machinery moving services, visit the Silver Knight Haulage & Machineries Ltd home page.

Expert machinery relocation services using advanced lifting technology

At Silver Knight, we don't just provide equipment; we deliver a complete solution for factory plant relocation. Our team integrates advanced hydraulic gantry systems with over 180 years of collective industry experience to ensure every lift is planned with absolute precision. This deep well of knowledge allows us to anticipate challenges before they arise, making the relocation of your heavy assets as smooth as possible. We handle the entire project, from the initial technical site survey to the final positioning of your machinery.

One of the most critical phases of any move is the transition from the indoor lift to the transport vehicle. We specialise in this seamless handoff. Once your equipment is safely lifted by the gantry, we coordinate the move onto our heavy haulage fleet. This eliminates the need for multiple contractors and reduces the risk of communication errors. By managing both the on site lifting and the transport, we ensure your assets are protected throughout their entire journey, whether they are moving across the town or across the globe.

Managed contract lifting and expert operation

A fully managed contract lift means we take on the legal and operational responsibility for the lifting project. This provides you with total peace of mind, knowing that a family run business with a long history is overseeing every detail. We don't rely solely on gantries; we also utilise jack and slide systems or specialised forklifts when the situation demands it. This multi tool approach ensures we have the right equipment for every specific challenge your facility presents, whilst our expert operators maintain constant control over the load's stability.

From factory clearance to global installation

Our services extend far beyond simple moves. We manage everything from a complete factory clearance to the installation of individual machines. If your business is expanding abroad, we have the capability for international machinery transport to Europe, the US, and Asia. We handle the complex logistics of decommissioning in the UK and recommissioning at your new global site. To start your next project with a professional assessment, contact our team for a technical survey today.

To ensure your machinery is moved with the highest level of care and precision, visit Silver Knight Haulage & Machineries Ltd today.

Secure the future of your industrial assets

Selecting the right equipment is the most important decision in any machinery moving project. Hydraulic gantry systems offer the most reliable way to handle heavy loads in restricted spaces, providing a level of stability and control that traditional cranes simply cannot match. By opting for a managed service rather than simple hire, you ensure that every lift is backed by technical site surveys and expert operation. This approach minimises risk and protects your high value assets throughout the entire relocation process.

Silver Knight provides fully managed contract lifting services across the UK, drawing on over 180 years of collective industry experience. Our fleet of specialist equipment, including hydraulic gantries and versa lifts, allows us to tackle even the most challenging restricted access projects whilst maintaining the highest safety standards. We manage everything from decommissioning to international transport, ensuring a seamless transition for your business. Contact our expert team today to discuss your next heavy lifting project and receive a professional assessment tailored to your facility. We're ready to help you complete your next relocation with confidence and efficiency.

Frequently Asked Questions

What is a hydraulic gantry system?

A hydraulic gantry system is a portable lifting frame that uses telescopic hydraulic legs to lift and position heavy machinery. It consists of at least two or four legs connected by a header beam. This design allows it to straddle a machine and lift it vertically with high precision. It's particularly useful for factory plant relocation where space is limited and traditional cranes cannot operate due to low ceiling heights.

How much weight can a typical hydraulic gantry lift?

The lifting capacity of hydraulic gantry systems varies significantly depending on the configuration and model used. Smaller systems might handle loads around 20 tonnes, while larger industrial setups can lift over 500 tonnes. For most factory environments, systems in the 60 to 200 tonne range are common. We always match the specific equipment to your machine's weight and the site's structural limits to ensure a safe and successful lift.

Why should I choose a gantry over a mobile crane for indoor lifting?

You should choose a gantry because it has a much smaller footprint and requires far less overhead clearance than a mobile crane. Mobile cranes need space to extend booms and outriggers, which is often impossible inside a factory. Gantries operate directly above the load and use electric or clean hydraulic power, avoiding the dangerous diesel fumes associated with cranes. This makes them a safer and more cost effective choice for indoor industrial projects.

Are hydraulic gantries safe for use on standard factory floors?

Yes, they are safe, provided that a technical site survey is conducted first to assess the floor's load bearing capacity. Because gantries exert high point loads through their legs, we often use steel spreader plates or timber matting to distribute the weight across a larger area. This prevents damage to the floor and ensures the equipment remains level and stable throughout the entire machinery moving process, protecting your facility's structural integrity.

Do I need to provide the operators for the gantry hire?

No, we provide fully operated lifting equipment as part of our managed contract lifting service. Our team has over 180 years of collective industry experience, ensuring that every lift is handled by qualified professionals. We don't just hire out the hardware; we manage the entire operation, including the technical planning and safety documentation. This approach gives you peace of mind that your high value assets are in expert hands whilst we handle all the logistics.

What information do I need to provide for a gantry lift quote?

To provide an accurate quote, we need the dimensions and weight of the machinery, along with details about the access routes and ceiling heights. It's also helpful to know about any underground services or floor specifications at your site. We usually start with a technical site survey to gather these facts ourselves. This ensures that the proposed solution is perfectly tailored to your specific facility and the complexity of the machinery move.

Can hydraulic gantries move the load horizontally as well as vertically?

Yes, hydraulic gantry systems can move loads horizontally by using a track or rail system. Once the machinery is lifted vertically, the entire structure can travel along the rails to transport the load to a new position within the factory. This is often combined with jack and slide systems for even greater flexibility. This capability is essential for precise positioning on pre prepared foundations or for moving equipment safely through narrow aisles.

How long does it take to set up a hydraulic gantry system?

Setup time depends on the complexity of the lift and the site conditions, but it typically takes between a few hours and a full day. Because the system is transported in sections, it can be moved through standard doorways and assembled quickly around the machine. This is often much faster than the building modifications required for crane access. Our experienced team ensures that assembly and testing are completed efficiently to minimise your operational downtime.
