Our Heavy Moving Equipment
We own a lot of commercial moving equipment & moving machines, as well as machine-moving transport vehicles, required for the handling and transporting of plant and machinery, abnormal load movement, and abnormal load transportation within the UK and for export worldwide.
As High-Quality Commercial Movers, we can organise and transport abnormal loads, which include providing escort vehicles, as well as abnormal loads of industrial machinery, transport equipment of all sizes, including wide loads, supply CNC machine movers, commercial equipment movers, as well as construction equipment transport, to name but a few.
Silver Knight will also hire additional equipment if a project requires it. We fully maintain and test all our equipment and can provide test certificates on request.
We have converted all our equipment from diesel to gas. As a result, we are continually adding to our equipment roster and taking advantage of investing in more environmentally friendly equipment where we can.
For instance, some of our equipment consists of:
Versa Lift 25/35
Our Versalift Hire service allows us to use them on our jobs or to hire out our VersaLifts, which are 16-ton lifts usually used to lift small CNC machines. This lifting machine is ideal for lifting loads in tight quarters, and our 25/35 Model can handle loads of 25,000 pounds with the base retracted - or up to 35,000 pounds with the floor extended. As a result, this machine is ideal for getting into congested areas that other machines can't reach. Our staff are qualified to operate this moving equipment.
Recommended for: Moving medium CNC machines and presses in tight factory spaces.
Specification | Retracted | Extended |
Max Lifting Capacity | 11.3 Tonnes (25,000 lbs) | 15.9 Tonnes (35,000 lbs) |
Overall Width | 1,520 mm | 1,520 mm |
Overall Height (Mast Lowered) | 2,720 mm | 2,720 mm |
Wheelbase | 1,930 mm | 3,149 mm |
Weight (Approx. Total) | 14,000 kg | 14,000 kg |

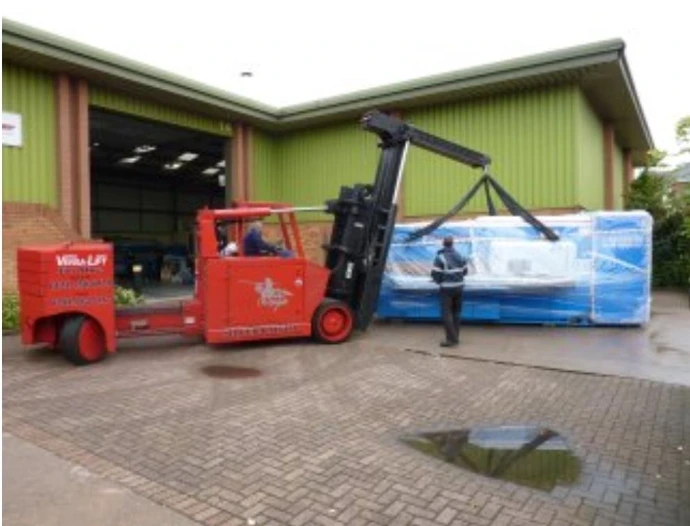

Versa Lift 40/60
Our Versa 40/60 is a 30-ton lift, used, for example, to remove large presses, pick up loaded shipping containers, lift presses over, and lift large CNC machines. As a result, this machinery can lift 40,000 pounds with the base retracted - or up to 60,000 pounds with the base extended. Built with manoeuvrability, power, and ease of use in mind, the 40/60 is our heavy-duty forklift. Our staff are qualified to operate this moving equipment.
Specification | Retracted Base | Extended Base |
Max Lifting Capacity | 18.1 Tonnes (40,000 lbs) | 27.2 Tonnes (60,000 lbs) |
Overall Width | 1,828 mm | 1,828 mm |
Overall Height (Mast Lowered) | 2,565 mm | 2,565 mm |
Overall Length (to fork face) | 3,937 mm | 5,156 mm |
Wheelbase | 2,489 mm | 3,708 mm |
Max Lift Height (to fork) | 6,096 mm | 6,096 mm |
Unladen Weight | 24,040 kg | 24,040 kg |
Fuel Type | Clean LPG | Clean LPG |

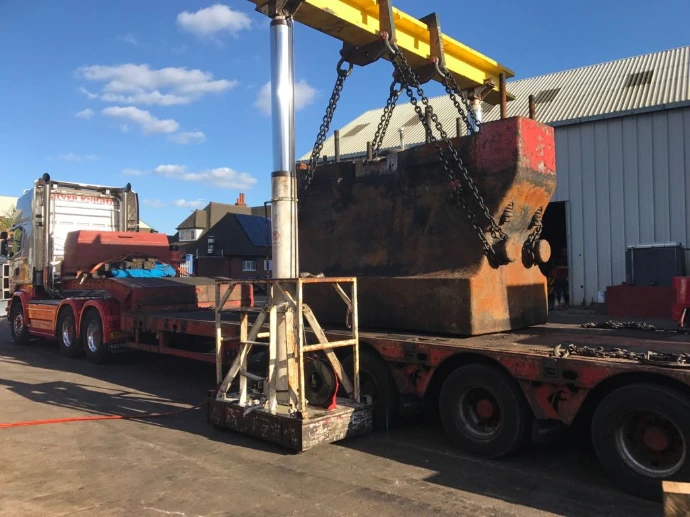

200 Tonne Mega Lift (Hydraulic Gantry)
The Megalift is especially useful for moving presses and other heavy machinery. Designed to lift loads up to 200 tonnes, it is an ideal solution for lifting awkward, bulky machinery.
Recommended for: Heavy plant relocation where overhead cranes are unavailable.
Specification | Capacity / Detail |
Maximum Lift Capacity | 200 Tonnes (181 Metric) |
Number of Lift Points | 2 or 4 Point Systems available |
Retracted Height | 3,022 mm |
Max Extension Height | Up to 8,350 mm |
System Width | 914 mm to 1,194 mm (per leg) |

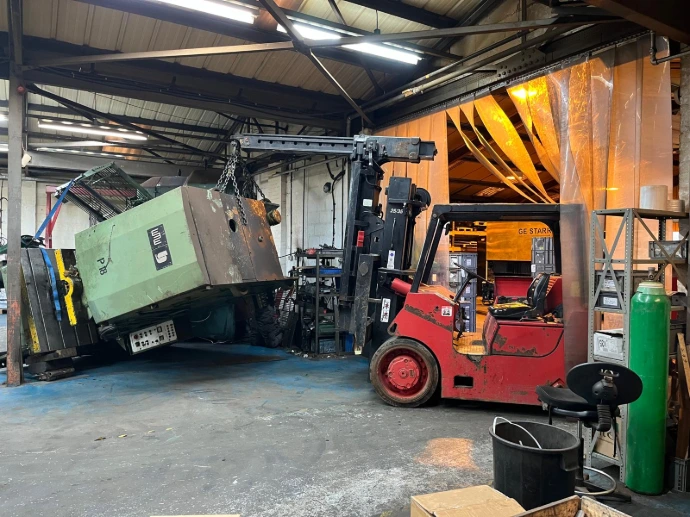

S 5.5 Tonne Forklift Truck
They are used around factories to move small machinery and equipment, and are very versatile in most jobs. Equipped with gas usage capability, they are environmentally friendly and suitable for factory use. Due to their size, they can easily manoeuvre through tight factories and other tight, small areas, and are ideal for moving heavy pallets and machinery weighing up to 5.5 tonnes. These forklifts are a great asset due to their size and lifting capabilities of up to 5.5 tonnes.
Recommended for: Narrow-aisle work and loading/unloading shipping containers.
Specification | Detail |
Lifting Capacity | 5.5 Tonnes |
Overall Width | 1,437 mm |
Mast Height (Lowered) | 2,305 mm |
Turning Radius | 2,614 mm |
Fuel Type | Clean LPG (Indoor Use) |

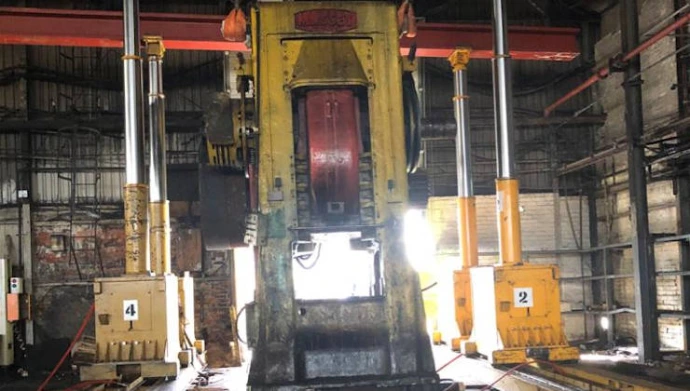

400 Tonne Megalift (Hydraulic Gantry)
Ideal for moving heavy objects, machinery, and plant equipment and machinery up to an impressive 400 tonnes.
Recommended for: The most demanding industrial lifts and large-scale factory relocations.
Specification | Capacity / Detail |
Maximum Lift Capacity | 400 Tonnes (362 Metric) |
Max Lift Height | 9,100 mm (Configuration dependent) |
Base Length | 1,867 mm |
Base Width | 1,229 mm |
Power Source | LPG / Electric (Indoor Friendly) |
S7 7 Tonne Forklift Truck
They are used around factories to move small machinery and equipment. We have converted them to run-off gas, making them versatile in most jobs. Equipping forklifts with gas engines makes them environmentally friendly and suitable for factory use. Due to their size, they can easily manoeuvre through tight factories and other tight, small areas, and are ideal for moving heavy pallets and machinery weighing up to 7 tonnes. These forklifts are a great asset due to their size and lifting capabilities of up to 7 tonnes.
Recommended for: General machinery handling and heavy palletised goods.
Specification | Detail |
Lifting Capacity | 7.0 Tonnes |
Load Centre | 600 mm |
Overall Width | 1,438 mm |
Mast Height (Lowered) | 2,302 mm |
Turning Radius | 2,585 mm |
Contact us to find out more

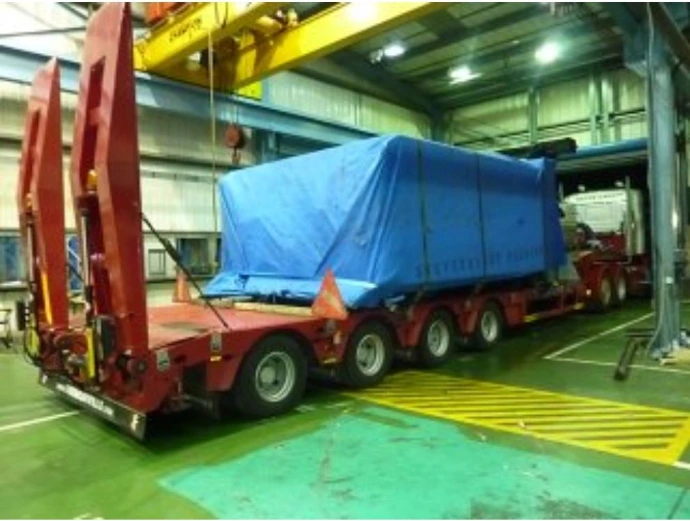

Semi Ramp Low Loaders
We use these semi-ramp low-loaders to transport light and heavy loads. It comes equipped with extensive rear loading and secure ramps, allowing machinery to be safely loaded and ready for transport using our Scania tractor units. These can safely and efficiently carry 70 tonnes of machinery.
Recommended for: Self-propelled plant and heavy machinery transport.
Specification | Detail |
Max Carrying Capacity | 70 Tonnes |
Ramp Type | Hydraulic Flip-Toe Ramps |
Loading Angle | 10 Degrees (Low Incline) |
Width | 2,550 mm to 3,000 mm (with outriggers) |
45 Foot Flat Trailer
We use these 45-foot flatbed trailers to transport light and heavy loads. These trailers are ideal for flat loads and can easily carry up to 28 tonnes of heavy machinery. These are a perfect alternative to our low loader for straightforward, less complicated moves.
Recommended for: Oversized or wide machinery loads.
Specification | Detail |
Bed Length | 13,716 mm (45 Feet) |
Max Payload | 28 Tonnes |
Deck Height | ~1,500 mm |
Width | 2,500 mm |

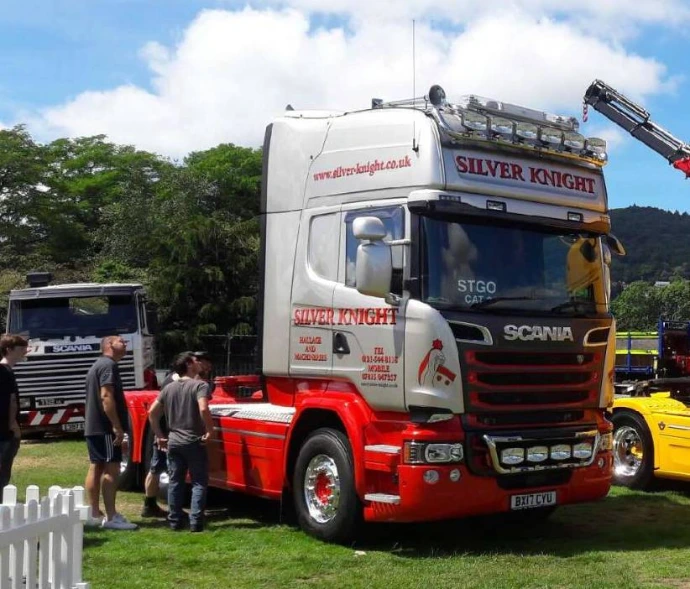

Scania Tractor Unit (Heavy Haulage)
This Scania Tractor Unit is ideal for pulling loads of 80 tonnes using the low loader. This tractor unit is also Euro 6 environmentally friendly as well.
Recommended for: National and international machinery transport.
Specification | Detail |
Lifting Capacity | 5.5 Tonnes |
Overall Width | 1,437 mm |
Mast Height (Lowered) | 2,305 mm |
Turning Radius | 2,614 mm |
Fuel Type | Clean LPG (Indoor Use) |

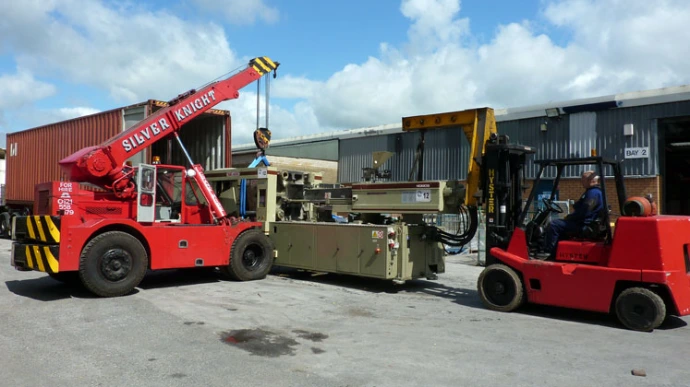

Super 6 Iron Fairies (Pick & Carry Cranes)
16-tonne lifts are ideal for use around factories and for pulling equipment out of containers. We can also hire out these Iron Fairies on a day-to-day basis. Our Iron Fairies are gas-operated, and are ideal for rough terrains too, making them environmentally friendly and ideal for factory and yard use. These can lift everything from 1-tonne to 16-tonne machinery and other heavy items.
Recommended for: Versatile lifting and carrying across factory floors and yards.
Specification | Capacity / Detail |
Max Lifting Capacity | 6.0 Tonnes (at 1.5m radius) |
Overall Width | 2,450 mm |
Overall Height | 2,550 mm |
Max Outreach | 5,500 mm |
Travel Speed | Up to 15 km/h |

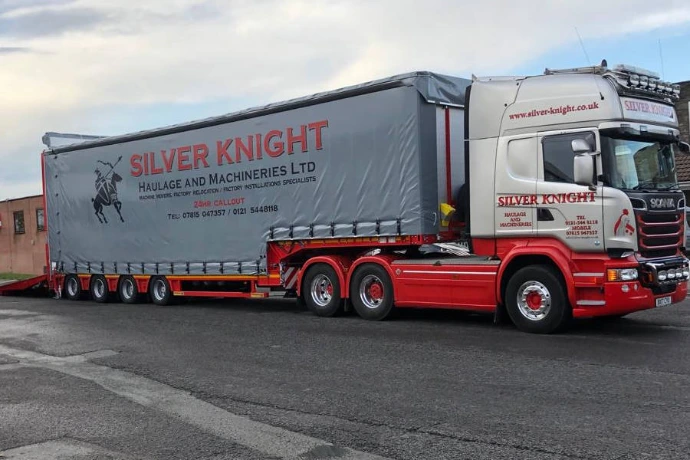

Faymonville Multi-N4LU 4 Axle Step Frame with Curtain Sider Body
We find our Curtain Siders ideal for moving heavy objects and machinery, as they protect the equipment from the elements. Additionally, they ensure the machinery's privacy during transit.
Recommended for: Transporting tall or heavy machinery under cover.
Specification | Detail |
Max Carrying Capacity | 49.3 Tonnes |
Bed Length (Extendable) | 13,100 mm (Extendable) |
Bed Width | 2,550 mm |
Loading Height | ~900 mm (Semi-Lowbed) |
Features | Curtain-sider for weather protection |

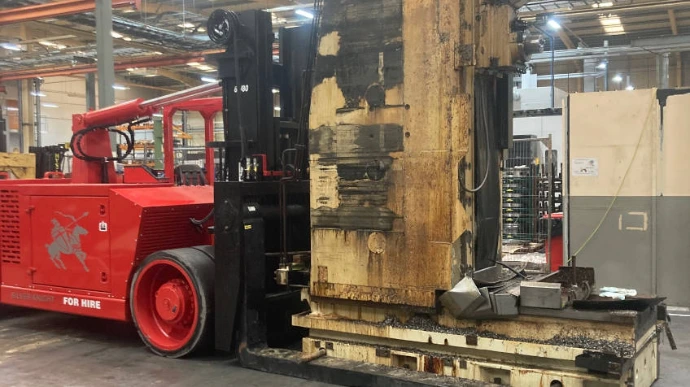

VERSA 60 / 80
The main benefits of this lifting machine are that it is only 2,135mm (7 feet) wide. 25.2 tonnes capacity at a 900mm load centre with a 3,050mm wheelbase. Frame extends 1,220mm to increase capacity to 35.9 tonnes. Six detachable counterweights can be easily removed, reducing the transport weight to 21.8 tonnes. 3-section hydraulic boom reaches 8,180mm high. Powered by a clean LP gas engine.
Recommended for: Heavy-duty industrial lifts where low-profile clearance is required.
Specification | Retracted | Extended |
Max Lifting Capacity | 27.2 Tonnes (60,000 lbs) | 36.3 Tonnes (80,000 lbs) |
Overall Width | 2,134 mm | 2,134 mm |
Overall Height (Mast Lowered) | 3,048 mm | 3,048 mm |
Wheelbase | 3,048 mm | 4,267 mm |
Max Lift Height (Boom) | 8,180 mm | 8,180 mm |
ABOUT US
Where are we based?
Though headquartered in Walsall, North of Birmingham, in the Midlands, we proudly supply moving equipment and offer our services nationwide. Regardless of your location within the country, we can cater to your needs and provide our reliable equipment and services.
What are Machine Moving Equipment
Machine moving is integral to industries ranging from manufacturing and construction to transportation and logistics. As businesses continue to evolve and expand, the need for specialised equipment to move heavy machinery becomes increasingly vital. Machine Moving Hire Equipment designs and caters to this demand by providing safe, efficient solutions for relocating and transporting large, heavy equipment.
Let us explore the different types of machine-moving hire equipment, their applications, and the benefits of using these specialised tools.
Types of Machine Moving Equipment
Here are some common questions about types of machines ands their capabilities.
Skates and rollers are virtual machine-moving tools designed to help easily transport heavy loads. They consist of wheels or rollers mounted on a platform, allowing machinery to glide smoothly across the floor. These tools are available in various capacities, sizes, and configurations to suit multiple applications.
Gantry cranes are a type of overhead crane consisting of a horizontal beam supported by two or more legs on wheels. These cranes are ideal for lifting and moving large, heavy equipment in workshops, manufacturing plants, and construction sites. They are available in various capacities, from light to heavy-duty.
Forklifts and telehandlers are powerful lifting machines that transport heavy loads over short distances. Equipped with forks or specialised attachments, they are suitable for moving machinery and bulky items. These machines are available in different sizes and capacities, ensuring a perfect fit for your requirements.
