Moving Machinery in Tight Spaces with Specialist Engineering Solutions

What if the most significant barrier to your next facility upgrade isn't the weight of the machine, but the very building it sits in? In many UK factories, you'll find that standard lifting gear simply won't fit through narrow doorways or under low ceilings, making jack and slide systems an essential part of your toolkit. It's a stressful situation because you can't risk structural damage to your site, and every hour of operational downtime eats into your profits. You know that traditional forklifts often lack the precision needed for these tight spots.

We understand that moving heavy industrial assets in confined spaces feels like a high-stakes puzzle. This guide will show you how to solve it by using specialised engineering solutions to relocate machinery safely and efficiently. You'll discover the technical strategies required to protect your floors and walls whilst keeping your project on schedule. We'll walk through the essential tool options and a clear step by step plan, helping you find a partner with the right restricted access gear to get the job done without the drama.

If you are planning a complex move, you can rely on specialist machinery movers to handle the engineering challenges of your facility.

The Technical Challenges of Restricted Access Machinery Relocation

Restricted access in engineering terms describes any environment where standard safety margins for lifting equipment are impossible to maintain. This is a common issue in older UK industrial sites where layouts weren't designed for modern, larger assets. When you are manoeuvring a heavy press or CNC machine through a narrow corridor, the physics of load distribution changes. Industrial machinery doesn't behave like a uniform pallet of bricks. The weight is often concentrated in one corner, making the asset prone to tipping if it isn't handled with extreme care.

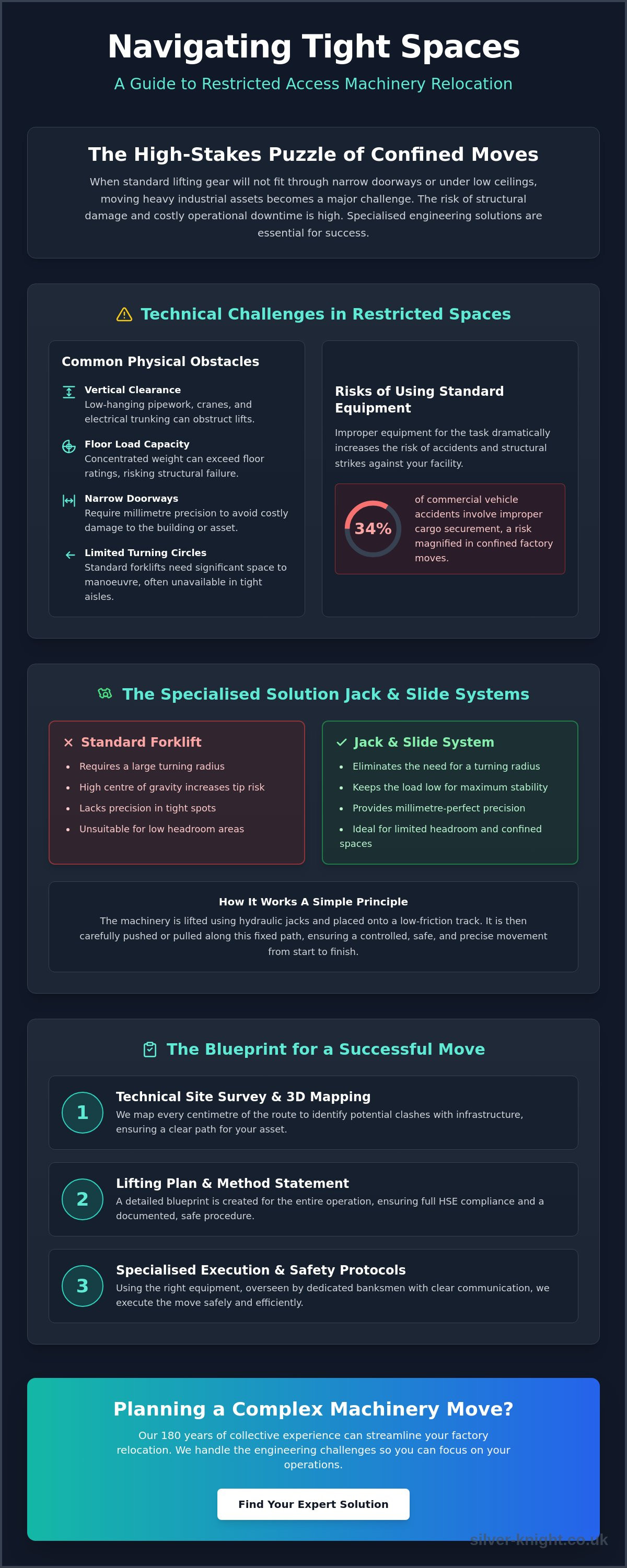

The turning circle is perhaps the most significant limitation. A standard forklift needs a substantial amount of space to swing its rear end whilst carrying a load. In a tight aisle, this simply isn't possible. This is where jack and slide systems become invaluable. By moving the load along a fixed track, you eliminate the need for a turning radius and keep the weight low to the ground. This method is a core part of professional Rigging strategies used to navigate the most challenging factory floors.

To better understand how these systems work in practice, watch this helpful video:

Identifying Physical Obstacles in Industrial Environments

Vertical clearance is a factor often overlooked during a factory relocation service. Low hanging pipework, overhead gantry cranes, and electrical trunking can all obstruct a lift. Professional teams must calculate the exact height of the asset once it's raised onto its transport skates. Floor load capacity is another critical factor. A machine might weigh 10 tonnes, but the equipment moving it adds several more tonnes to a small surface area. If the floor slab isn't rated for that concentrated weight, you risk a structural failure. Narrow doorways also require millimetre precision, as even a slight misalignment can lead to costly damage to the building or the machine itself.

Risks of Using Standard Lifting Gear in Narrow Aisles

Improper cargo securement and handling are major factors in industrial accidents. In fact, data suggests that improper securement contributes to 34% of commercial vehicle accidents, and the risks are even higher when moving heavy loads within a confined factory floor. Standard forklifts often fail in compact moves because they lack the necessary counterweight ratio. If you can't get the back of the truck far enough behind the load, you risk a tip. Mobile cranes also pose a threat because their boom swing requires a huge clear radius. Using equipment that isn't purpose built for the task significantly increases the risk of structural strikes against your facility.

Before you begin your project, you might want to look at expert engineering solutions for moving heavy equipment in restricted areas.

Technical Planning and Site Surveys for Confined Spaces

A technical site survey is the foundation of any successful machinery move. We don't just look at the final destination; we map out every centimetre of the route. This often involves 3D space mapping to identify potential clashes with overhead infrastructure or narrow gangways. For large scale changes, our factory relocation services provide the oversight needed to manage these complex variables. We must produce a written lifting plan and a method statement to ensure full HSE compliance. These documents act as a blueprint for the entire operation, detailing how we will use jack and slide systems to move assets through areas where cranes simply cannot reach.

Coordination with production managers is equally vital. We need to understand your facility's workflow to ensure the move doesn't stop your business from functioning. We plan the timing to avoid peak production hours and ensure that all necessary floor protection is in place before the heavy work begins. This level of planning reduces the high cost of operational downtime and gives you confidence in a step by step plan. We've found that early communication prevents the structural damage that often occurs when teams rush into a move without a clear strategy.

Measuring Clearances and Floor Load Capacities

Measuring the path of travel requires absolute accuracy. We use laser measuring tools to check tight gaps, ensuring there is enough room to manoeuvre without striking walls or support pillars. A key part of this survey is calculating floor load capacities. We need to understand the difference between point loads, where the weight is concentrated on a small area, and distributed loads. If the floor slab is weak, we calculate exactly where pressure points will occur. We then use steel plating or specialised timber to spread the pressure, which prevents structural damage to your facility and ensures the safety of the moving team.

Creating a Detailed Lifting Plan for Tight Environments

A detailed lifting plan for tight environments must include Critical Safety Protocols to protect both the staff and the machinery. We identify every emergency exit route that must remain clear during the operation. Navigating a 90 degree corner requires a specific sequence of movements, often involving multiple repositioning stages with the jack and slide systems. Our risk assessment covers everything from floor levels to the proximity of other live machinery. If you have a challenging move on the horizon, you can speak with our technical team to discuss your specific requirements.

To ensure your heavy assets are moved with the right tools, you can explore the range of professional moving equipment available for hire.

Specialised Equipment for Precision Manoeuvring

Success in restricted environments depends on having the right gear for the job. Whilst standard forklifts are fine for open warehouses, they often struggle with the weight to size ratio required for heavy industrial machinery. The Versa-Lift has become the industry standard because it solves this specific problem by providing massive lifting power in a compact frame. For horizontal precision, we often use electric tugs. These small but powerful units allow an operator to guide an asset into a tight corner with millimetre accuracy. If the floor is particularly sensitive, air skates can be used to float the load on a thin cushion of air, preventing any direct contact with the surface.

In situations where vertical space is limited, hydraulic gantry systems offer a compact alternative to mobile cranes. These gantries can lift heavy loads directly upwards within the footprint of the machine itself. This is vital when you are working under low ceilings or amongst existing production lines. For a deeper look at these technologies, our specialised lifting guide provides a comprehensive breakdown of how each piece of equipment handles different weight classes and site constraints.

Versa Lift and Compact Forklift Solutions

The standout feature of the Versa-Lift is its extendable counterweight. By pushing the wheelbase out, the lift capacity increases significantly without the need for a larger machine. This allows a compact model to handle much heavier loads than a standard industrial forklift of the same size. It is the perfect tool for navigating narrow factory aisles where space is at a premium. We typically use LPG or electric powered versions for indoor work to ensure that exhaust fumes don't compromise the air quality for your staff. This flexibility allows us to perform heavy lifts in areas that would otherwise be completely inaccessible.

Jack and Slide Systems for Low Headroom Areas

When headroom is so restricted that even a compact forklift cannot operate, jack and slide systems are the safest option. These systems work by using hydraulic jacks to lift the machine just enough to place it onto a set of low profile tracks. The machine is then pushed along these tracks using hydraulic cylinders. This method is much safer than using traditional rollers because the load is always captive on the track, eliminating the risk of the machine veering off course. Our jack and slide systems ensure a perfectly straight path, which is essential when you have only millimetres of clearance on either side of the asset.

If you want to ensure the safety of your facility during a complex move, you can partner with an experienced machinery moving team to manage the risks.

Critical Safety Protocols for Moving Heavy Loads in Small Areas

Safety in confined spaces isn't just about having the right equipment; it's about the people and the protocols they follow. Every move requires a dedicated banksman. This person acts as the eyes of the operation, guiding every inch of the move from a vantage point the equipment operator might not have. In noisy UK factories, verbal instructions can easily be lost amongst the background hum of production. We use a combination of non-verbal hand signals and radio headsets to ensure clear, instant communication. If a clearance is breached by even a single millimetre, the protocol is to stop the move immediately. This "all stop" authority is given to every member of the team to prevent accidents before they happen.

Managing bystanders and other factory staff is another crucial factor. We often cordon off large areas of a live facility to keep unauthorised personnel away from the lift zone. If a machine is too large to move safely in its current state, we use machinery dismantle services to break the load down into smaller, more manageable components. This reduces the risk of structural strikes and makes navigating tight corners much simpler. The use of jack and slide systems allows for a controlled, incremental movement that is far safer than a single, high-speed lift in a restricted space.

Communication and Team Coordination in Noisy Environments

Professional machinery movers in the UK follow a strict set of standard hand signals. These signals are universal across the rigging industry, ensuring that everyone knows exactly what "hoist" or "lower" looks like without needing to shout. The lead rigger orchestrates the entire move, especially during multi point lifts where multiple jacks are used at once. Before the machine is even lifted, we hold a clear briefing session. This ensures every team member knows their specific role and the exact sequence of the move, reducing the chance of confusion when the work begins.

Managing Floor Protection and Structural Integrity

Protecting the building's infrastructure is as important as protecting the machine. We use steel plates or timber spreading to distribute the weight across floor slabs, especially when moving over underground services or drains. Moving heavy loads over basement areas or pits requires extra calculation to avoid a structural collapse. When using jack and slide systems, we ensure the machine is perfectly level to prevent centre of gravity shifts. A shifting load in a tight space is incredibly dangerous, so we use hydraulic sensors to monitor the weight distribution in real time. If you want to discuss a safe plan for your next project, you can contact our safety experts today.

If you need a reliable partner for your next industrial project, you can partner with expert machinery movers who specialise in complex, restricted access relocations.

Professional Machinery Moving Services with Silver Knight

Silver Knight Haulage & Machineries Ltd provides a level of expertise that's hard to find in the UK industrial sector, backed by over 180 years of collective experience within our team. We don't just move machines. We provide a complete end to end service that begins with a comprehensive technical site survey. Our engineers map out the entire route to ensure every turn is possible before any heavy lifting begins. Whilst our national reach covers the entire United Kingdom, we also provide international machinery transport for global relocations. We've invested heavily in the latest hydraulic technology, including advanced jack and slide systems, to ensure your assets are handled with the highest level of care.

Our commitment to safety and precision is reflected in our choice of equipment. We use the latest hydraulic gantry systems and low profile sliding gear to manage loads that would be impossible to lift with standard cranes. This technology allows us to work in environments with extremely low headroom or sensitive floor surfaces. By combining this gear with a highly trained team, we can guarantee a level of control that minimises the risk of damage to your facility. We understand that your machinery is a vital investment, and our goal is to move it as if it were our own.

Decades of Experience in Complex Industrial Relocations

Being a family run business allows us to offer personal project management that you won't get from larger, faceless corporations. Every factory is different, so every project plan we create is bespoke. We specialise in the most challenging restricted access projects, using our technical knowledge to navigate environments where others might struggle. Our engineers take the time to understand the specific requirements of your machinery, ensuring that the plan we develop minimises risk and keeps your project on track. This personal touch ensures that you always have a direct point of contact who understands the nuances of your specific site.

Full Decommissioning and Installation Support

A major hurdle in many relocation plans is the decommissioning phase, especially when moving in tight spots. We solve this by offering full decommissioning and installation support. If a machine is too wide for a doorway or too tall for a specific corridor, we can dismantle it for you. Our team handles everything from the initial disconnection to the final recommissioning at your new site. By using a single contractor for the entire process, you eliminate the risk of miscommunication between different teams. Whether we are using jack and slide systems to move a massive press or rebuilding a complex production line, our focus is always on precision and safety.

If you are looking for a reliable partner, you can learn more about our specialist machinery moving services for industrial projects.

Secure Your Next Industrial Relocation with Expert Planning

Moving heavy machinery through restricted spaces doesn't have to be a risk to your facility or your production schedule. You now understand how technical site surveys and precision engineering provide the blueprint for a safe relocation. By choosing specialised tools like jack and slide systems, you can navigate narrow corridors and low ceilings that would stop a standard crane in its tracks. These engineering solutions ensure that even the most awkward assets reach their destination with millimetre accuracy whilst protecting your building's structural integrity.

Silver Knight brings over 180 years of collective industry experience to every project. Our comprehensive fleet includes Versa-Lifts and hydraulic gantry systems, allowing us to provide a reliable nationwide service across the United Kingdom. We handle the entire process from the initial decommission to the final recommissioning. Partner with the specialists at Silver Knight for your next complex machinery move. Your equipment is in safe hands with a team that values precision and safety above all else.

Frequently Asked Questions

How much room is needed to move a large CNC machine

You only need a few millimetres of clearance on either side of the machine if you use the right engineering solution. Whilst a forklift needs a wide turning radius, jack and slide systems move the asset along a fixed track, meaning the path only needs to be slightly wider than the machine itself. This is why we conduct a 3D site survey to map out the exact clearances before the work begins.

Can you move heavy machinery under a low mezzanine floor

Moving heavy loads under mezzanines or low ceilings is possible with low profile equipment. We use hydraulic gantries or specialised skates that keep the machine close to the floor. This eliminates the need for the high vertical clearance required by mobile cranes or standard forklift masts. Our team calculates the exact height including the transport gear to ensure safe passage under any overhead obstructions without risking structural damage.

What is a jack and slide system and when is it used

A jack and slide system is a specialised tool used to move massive assets in areas with limited headroom or floor capacity. It works by jacking up the machine, placing it on high capacity tracks, and then sliding it horizontally using hydraulic cylinders. This method is used when traditional lifting gear cannot fit or when the floor cannot support the concentrated weight of a large forklift during a move.

Do I need to empty my factory before moving a single machine

You don't need to empty your entire facility to move one piece of equipment. Professional movers specialise in working within live environments whilst your production continues. We use cordons, banksmen, and clear communication to keep your staff safe. By planning the route carefully during our initial survey, we can often move heavy assets through narrow aisles without disturbing your existing production lines or causing significant downtime.

Is a Versa Lift better than a standard forklift for tight spaces

A Versa-Lift is significantly better than a standard forklift for confined spaces because of its extendable counterweight. This feature allows the machine to handle much heavier loads whilst maintaining a compact footprint and a smaller turning circle. It gives the operator the power of a large truck with the manoeuvrability of a much smaller unit. This is essential for navigating tight factory corners where space is at a premium.

How do you protect the factory floor during a heavy machinery move

We protect your factory floor by using load spreading techniques such as steel plating or heavy duty timber. These materials distribute the weight of the machine across a larger surface area, preventing damage to the concrete slab or underground services. For particularly sensitive surfaces, we might use air skates that float the machine on a cushion of air, ensuring there is no direct friction or point loading on your floor.

What insurance is required for moving machinery in restricted areas

You should ensure your moving partner has comprehensive public liability and goods in transit insurance. For restricted access moves, it's also vital that the contractor has specific cover for the lifting operation itself. We recommend checking that the policy limits are high enough to cover the full replacement value of your machinery and any potential damage to your building's infrastructure during the relocation process.
