Specialised Lifting, Versa-Lift, Gantry, and Jack Systems

Corporate relocation spending in the United Kingdom reached £2.3 billion in 2023, representing a 15% increase as manufacturers reshored operations to mitigate global risks.

This surge in activity demands efficient machinery movement within existing factory footprints where space is often restricted to less than 500 square metres.

You likely find that traditional mobile cranes are often too tall for your 4-metre ceilings, whilst heavy axle loads risk cracking reinforced concrete floors designed for 10-tonne limits.

As heavy lifting specialists, we advocate for the versa lift as a tactical engineering tool that provides lifting capacities up to 100 tonnes without the need for costly roof removals.

We understand that dismantling a 30-tonne production line just to fit through a narrow exit is a logistical nightmare that causes 14 days of unnecessary downtime.

Crucially, following best practice ensures your assets remain protected throughout the relocation process.

This guide explains how specialised 45-tonne lifting systems allow you to relocate heavy plant safely whilst maintaining precision positioning to within 5mm.

You'll discover the technical capabilities of our telescopic frame fleet and how they bypass common restricted access challenges.

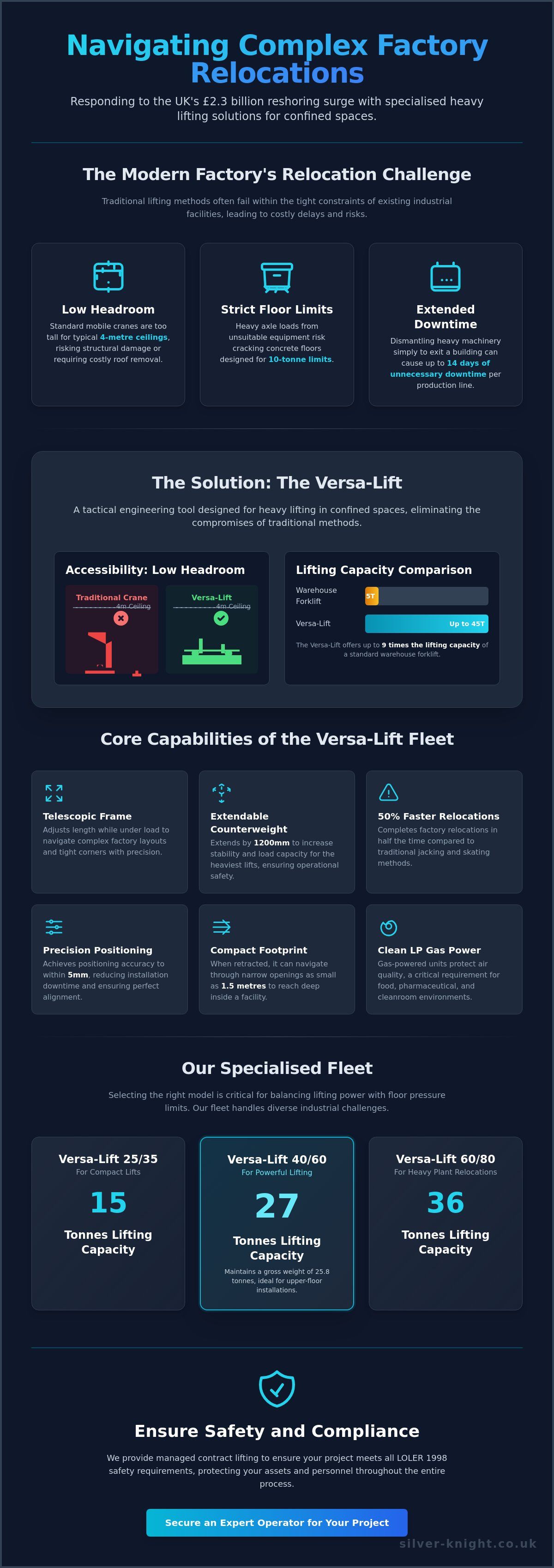

The Versa-Lift Forklift for Industrial Machinery Moving

The versa lift is a specialised heavy-duty forklift designed with a telescopic, extendable frame for industrial relocations. It's the primary tool for moving assets up to 45 tonnes within confined spaces where standard cranes cannot reach.

Unlike standard warehouse units, these machines feature a removable hydraulic boom for overhead lifting in low-profile environments. Silver Knight Haulage & Machineries Ltd operates a versatile fleet including the iron fairy and various models to handle diverse industrial challenges.

• Versa-Lift 25/35 for compact 15-tonne lifts.
• Versa-Lift 40/60 for powerful 27-tonne lifting capacity.
• Versa-Lift 60/80 for heavy 36-tonne plant relocations.

To better understand this concept, watch this helpful video showing the equipment in action.

The telescopic frame is powered by high-pressure hydraulics that allow the operator to adjust the machine's length whilst under load. This feature is essential for navigating the complex layouts of traditional UK textile mills and modern aerospace facilities.

Distinguishing Machinery Moving Forklifts from Access Platforms

Best practice dictates that machinery movers distinguish between lifting equipment and personnel access platforms. Confusion often arises between industrial forklifts and aerial work platforms, but this equipment is strictly for horizontal and vertical plant relocation.

Standard warehouse forklifts rarely exceed a 5-tonne limit, making them unsuitable for heavy forklift moving service requirements. This specialised equipment provides a powerful 45-tonne lifting capacity that allows for the safe handling of massive injection moulding machines.

As heavy lifting specialists, we advocate for the use of gas-powered units to protect factory air quality. Crucially, the LP gas configuration is a requirement for many food and pharmaceutical environments to prevent soot buildup on clean surfaces.

The Role of the Extendable Counterweight

Best practice dictates that the counterweight must be fully extended to ensure stability during high-capacity lifts. The chassis of the versa lift extends by exactly 1200mm to shift the weight distribution and increase load centre capacity.

The extension mechanism is built from high-tensile steel to withstand the immense shearing forces generated during a maximum lift. Using this technology allows us to complete a factory relocation in 50% less time than using traditional jacking and skating methods.

The machine maintains a compact footprint that allows passage through doors as narrow as 1.5 metres when retracted. This flexibility ensures that the machine can reach the centre of a factory floor to achieve precision positioning within 5mm.

Silver Knight Haulage & Machineries Ltd provides expert machinery moving for complex industrial projects across the UK.

You can secure a Versa-Lift hire with a fully qualified operator to manage your next complex industrial project.

Technical Specifications of the 40/60 and 60/80 Models

Selecting the correct versa lift model is essential when calculating floor pressure for UK factory relocations. These units are selected based on their specific axle weights to prevent structural damage to 50-year-old industrial slabs.

The 40/60 model features a powerful 27-tonne lifting capacity whilst maintaining a gross weight of 25.8 tonnes. This specific weight distribution makes it the preferred choice for upper-floor installations where load limits are strictly enforced.

Silver Knight provides a fully managed machinery moving service using these advanced units. Our team ensures every versa lift deployment is overseen by an experienced lift supervisor to maintain safety on-site.

Versa-Lift 40/60 Capacity and Reach

This model achieves a maximum fork lift height of 2.54 metres from its base position. It provides a 12-degree forward tilt and a 7-degree backward tilt to ensure load stabilisation during transit across uneven factory floors.

Crucially, the unit includes a removable 6.8-tonne counterweight that allows for easier transport between sites. This modular design reduces the need for heavy haulage permits on most UK road networks.

Versa-Lift 60/80 for Heavy Duty Plant

The 60/80 model delivers a powerful 45-tonne lifting capacity for the most demanding industrial applications. It reaches a maximum extension height of 8.18 metres when utilising the specialised hydraulic boom for overhead lifts.

This unit has a total gross weight of 36.3 tonnes, which requires careful planning to protect reinforced factory floors. We often deploy this model for moving large CNC machines and 40-tonne power presses in high-output manufacturing facilities.

Following OSHA safety and safety standards ensures that all powered industrial trucks are operated within their technical design limits. This rigorous approach to safety protects your valuable assets and site personnel during every lift.

You can find more details on our specialised lifting fleet to compare these models in depth. This ensures you select the most efficient equipment for your specific floor loading requirements.

Explore our full range of specialised equipment by visiting our machinery moving fleet page for detailed technical specifications.

Navigating Restricted Access Environments and Low Headroom

UK manufacturing facilities often operate within historic textile mills where ceiling heights are restricted to 3.5 metres.

These environments present significant challenges for standard lifting gear that requires high clearance to operate safely.

As heavy lifting specialists, we advocate for the versa lift in these scenarios because its low profile passes under overhead pipework.

This capability eliminates the need for expensive structural modifications during complex plant relocations.

In basement installations where vertical space is at a premium, we prefer these telescopic units over traditional mobile cranes. For the most extreme restrictions, we may utilise jack and slide systems to move loads through areas with zero overhead clearance.

The ability to work in confined spaces ensures that production can continue in adjacent bays whilst the installation takes place. This strategic approach minimises operational downtime and protects the integrity of the building structure.

Indoor Logistics and Doorway Clearance

We utilise machinery that provides a powerful 30-tonne lifting capacity whilst remaining compact enough to fit through a 2.5-metre door. This allows us to move heavy assets without dismantling the building fabric or removing external brickwork.

The precision steering systems enable 90-degree turns within narrow factory corridors that measure only 3 metres in width. Crucially, this manoeuverability reduces the risk of accidental damage to existing infrastructure during transit.

Best practice involves following Contract Lifting and Safety Standards to ensure all indoor movements are fully risk-assessed. This approach protects both the operator and the valuable machinery being moved.

Precision Positioning for Industrial Tooling

Our operators achieve precision positioning within a 5mm tolerance when placing heavy machinery on pre-prepared foundations. This level of accuracy is essential for aligning complex production lines that require perfect levelling.

The integrated hydraulic side-shift allows for lateral adjustments of 100mm without the need to reposition the entire vehicle. This feature is particularly useful when working in tight-aisle facilities where floor space is limited.

The smooth hydrostatic drive provides consistent torque to prevent load oscillation during delicate movements across the factory floor. This ensures that sensitive electronic components within the machinery remain stable throughout the installation process.

By using specialised equipment, we can complete a factory relocation with significantly less disruption than traditional methods. Our team ensures every machine is positioned exactly to your engineering specifications.

Ensure your project remains compliant with UK safety regulations by booking a qualified machinery moving team for your next lift.

Best Practice for Contract Lifting and Safety Standards

As heavy lifting specialists, we advocate for a fully managed contract lifting service to ensure total insurance compliance. Crucially, this managed approach transfers the liability for the lift plan and execution from your business to our expert engineering team.

Silver Knight provides a qualified operator with every Versa-Lift hire to maintain the highest safety standards on-site. These professionals possess the technical skills required to operate a powerful 45-tonne machine within restricted factory environments.

Every versa lift in our fleet undergoes rigorous LOLER inspections every 6 months to ensure mechanical integrity. Best practice dictates that a comprehensive site survey must be completed before any heavy lift commences to identify potential hazards.

Site surveys allow our engineers to assess the structural capacity of your facility floors and identify underground voids. We utilise ground-penetrating radar when necessary to ensure the powerful 25.8-tonne gross weight of the machine is safely supported.

RAMS and Technical Site Surveys

We create bespoke Risk Assessments and Method Statements (RAMS) for every project to address specific site challenges. These documents outline the exact path of travel and the sequence of lifting operations for your heavy assets.

Our safety planning is backed by 180 years of collective experience in the industrial relocation sector. This deep knowledge allows us to anticipate logistical bottlenecks before they impact your production schedule.

Detailed floor loading calculations are performed to prevent damage to underground services or voids. We ensure that the pressure exerted by the machine does not exceed the 50 kilonewtons per square metre limit of standard industrial slabs.

Insurance and Liability for Heavy Assets

Standard hire agreements often lack the necessary 'Goods Under Lift' insurance required for high-value industrial machinery. A fully managed machinery move provides comprehensive cover for assets worth over £1,000,000 during the entire relocation process.

You can protect your high-value assets by choosing a fully managed machinery moving service for your next project. This level of protection is essential when moving sensitive CNC equipment or medical imaging systems.

Operators perform 15 standard safety checks before the first lift of the day to verify hydraulic pressures and structural pins. These daily inspections are documented to maintain a clear safety audit trail for your project records.

Crucially, our insurance policies are tailored to the exact replacement value of your plant equipment. This ensures that every lift is conducted with the financial security required for high-value industrial relocations.

Contact us today to discuss your factory relocation requirements with our specialist engineering team.

Strategic Factory Relocation using the Versa-Lift Fleet

Integrating a versa lift into your factory relocation project streamlines the transition from decommissioning to transport. This single-machine approach removes the need for multiple pieces of equipment on-site, reducing logistical complexity.

These units work alongside hydraulic gantries and our low-loader transport fleets to manage loads up to 100 tonnes. Crucially, we manage complex relocations across the UK and provide international machinery transport to Europe and Asia.

Decommissioning and Loading Logistics

Our operators lift heavy assets weighing up to 45 tonnes directly onto waiting low-loader trailers to eliminate double handling on the factory floor. This process ensures the equipment remains secure and ready for immediate haulage without delay.

We utilise the powerful 8.18-metre hydraulic boom to dismantle upper sections of tall plant gear without requiring external scaffolding. For complex projects, we integrate our machinery dismantle service to prepare equipment for safe transit.

Minimising Operational Downtime

The rapid speed of versa lift operations, which can complete a loading cycle in under 20 minutes, keeps relocation schedules on track. This efficiency is vital when managing high-volume production facilities with strict deadlines.

You avoid the 4-hour set-up times associated with mobile cranes in busy industrial estates where space is limited. Silver Knight teams are available 24/7 for weekend factory shutdowns to ensure your plant is recommissioned by Monday morning.

As heavy lifting specialists, we advocate for this streamlined approach to reduce your total project duration by 30%. Best practice involves coordinating every lift with the haulage schedule to maintain a continuous and safe workflow.

Optimising Your Next Industrial Relocation

Choosing specialised machinery ensures your heavy assets move safely through restricted environments without the need for structural building modifications. Using a versa lift provides a powerful 45-tonne lifting capacity whilst maintaining precision positioning within 5mm.

As heavy lifting specialists, we advocate for managed contract lifting to protect your valuable production equipment and facility infrastructure. Crucially, our 180 years of collective industry experience ensures every project is delivered with full RAMS and comprehensive site surveys.

You can request a technical site survey for your Versa-Lift project today to secure your machinery moving schedule. Our fleet handles lifting capacities up to 100 tonnes for the most complex industrial relocations across the United Kingdom.

We look forward to helping you achieve a seamless transition for your manufacturing plant. Your project is our priority.

You can book a Versa-Lift hire with a fully qualified operator to manage your next complex industrial project.

Frequently Asked Questions

What is the maximum lifting capacity of a Versa-Lift

The largest model in our fleet provides a powerful 45-tonne lifting capacity when the telescopic frame is fully extended.

Crucially, we also manage larger projects using hydraulic gantries for loads up to 100 tonnes. Full RAMS provided for every project.

Can a Versa-Lift operate on standard factory floors

Most industrial units support the powerful 25.8-tonne gross weight of our 40/60 model if the concrete slab meets the 50 kilonewtons per square metre standard.

Best practice involves conducting a floor loading survey to identify underground voids. We provide precision positioning within 5mm on all factory surfaces.

What is the difference between a Versa-Lift and a standard forklift

A versa lift features a telescopic chassis that extends by 1200mm to increase its load centre capacity for heavy machinery.

Unlike standard forklifts, these units utilise a removable hydraulic boom for overhead lifting in low-profile environments. Every machine undergoes rigorous LOLER inspections every 6 months.

Do you provide an operator with Versa-Lift hire

Silver Knight provides a CPCS qualified operator with every machine hire to ensure safety and insurance compliance.

As heavy lifting specialists, we advocate for managed lifting to reduce the risk to your high-value assets. Full insurance cover is provided for every lift.

Can a Versa-Lift be used for outdoor machinery moving

These machines are designed with solid, non-marking tyres that perform best on level, reinforced concrete or asphalt surfaces.

Crucially, they can transition between indoor bays and outdoor loading areas to place machinery directly onto low-loader trailers. We manage relocations across the UK and internationally.

How do I book a site survey for a Versa-Lift project

You can arrange a technical site survey by contacting our engineering team through our machinery moving portal.

We will assess your specific access challenges and provide a detailed method statement within 48 hours. Our team brings 180 years of collective industry experience to every survey.

What are the door clearance requirements for a 40/60 model

The 40/60 model requires a minimum door width of 1.5 metres and a height of 2.5 metres when the mast is lowered.

This compact footprint allows the machine to enter restricted facilities where standard cranes cannot operate. We achieve 90-degree turns in corridors measuring 3 metres wide.

Is the Versa-Lift safe for use in food grade environments

We operate LP gas-powered units that are suitable for indoor use in food and pharmaceutical facilities.

These machines do not produce diesel soot, ensuring your cleanroom environments remain free from contamination. Crucially, non-marking tyres prevent damage to specialised floor coatings.
