UK manufacturing data shows that 45% of industrial plant relocations involve ceiling heights under 4 metres, requiring the use of jack and slide systems instead of conventional mobile cranes.
When you're tasked with moving a 60 tonne transformer through a restricted 3 metre doorway, these physical limitations create a high-risk environment that exceeds the capacity of standard iron fairy units.
Crucially, attempting to force a crane into a tight space often leads to structural damage to factory mezzanines or missed decommissioning deadlines that disrupt production schedules.
As heavy lifting specialists, we advocate for the use of jack and slide systems to navigate these low-headroom challenges while maintaining a precision within 5mm.
You understand that maintaining floor integrity is a non-negotiable priority when shifting heavy industrial assets across a reinforced concrete surface.
This technical guide details the best practice for using skidding equipment to move loads up to 100 tonnes safely and efficiently.
We'll outline the essential planning requirements and how to ensure your project remains fully compliant with UK RAMS standards.
Key Takeaways
- Discover how jack and slide systems facilitate the precise movement of heavy machinery in restricted industrial environments where overhead cranes cannot operate.
- Learn the technical requirements for modular skidding equipment capable of supporting loads exceeding 100 tonnes for complex UK factory relocations.
- Understand the necessity of rigorous site surveys and laser-levelled track preparation to ensure millimetre precision during the relocation process.
- Identify the specific steps for using synchronous hydraulic jacks to lift loads to the minimum required height for safe horizontal transport.
- Gain insight into how specialist equipment like Versa-Lifts and hydraulic gantries integrate with skidding tracks to streamline heavy industrial moves.
Table of Contents
https://silver-knight.co.uk/contact-us/
The Fundamentals of Jack and Slide Systems
UK manufacturing investment reached £22.4 billion in recent annual cycles, necessitating advanced machinery relocation techniques. Industrial sites often feature mezzanine floors or low-hanging gantries. These obstructions prevent the use of standard mobile cranes for heavy plant installation. Moving a 40-tonne transformer into a basement requires more than just raw lifting power. We utilise jack and slide systems to navigate these spatial constraints with millimetre precision.
As heavy lifting specialists, we advocate for jack and slide systems when working in restricted environments where overhead clearance is less than 4 metres. These systems employ high-capacity 500-tonne hydraulic push-pull cylinders to transition loads along a pre-constructed steel track.
Understanding the Fundamentals of rigging is vital for safely executing these complex manoeuvres. Best practice dictates that the load is first elevated vertically using hydraulic jacks before the horizontal skidding process commences.
The methodology relies on the controlled interaction between the skid shoes and the track surface to ensure smooth transit. It's a solution that prioritises stability, especially when moving assets that don't allow for the dynamic forces associated with traditional crane slings.
When to Use Skidding Over Traditional Lifting
Standard cranes require significant headroom and clear swing paths to operate safely within a factory. Jack and slide systems operate entirely within the footprint of the machinery, making them ideal for basement installations or areas with 4-metre ceiling heights.
Crucially, this method eliminates the need for expensive structural alterations during a factory relocation service. Our fleet includes specialised equipment like iron fairy units, but even these compact cranes cannot match the low-profile capabilities of a skid track in tight quarters.
Benefits of Hydraulic Load Positioning
Hydraulic control provides incremental movement, allowing our engineers to position assets within 5mm of the target mark. The 150mm low profile of the skid track reduces the required vertical jacking height to a minimum.
Safety is significantly improved because the load remains close to the ground throughout the horizontal move. This stability is essential when handling sensitive equipment weighing up to 100 tonnes in a single lift.
https://silver-knight.co.uk/contact-us/
Technical Components of Hydraulic Skidding Equipment
UK manufacturing output reached £224 billion in 2023. Industrial plant upgrades require moving massive assets within existing factory footprints. Traditional lifting methods often fail when overhead clearance is less than 5 metres. Engineers use jack and slide systems to move 100 tonne loads with millimetre precision.
Best practice requires a modular system that can be tailored to specific machine weights. This flexibility allows our teams to assemble configurations that handle everything from 20 tonne boilers to 100 tonne industrial presses.
Crucially, the system must support loads exceeding 100 tonnes for industrial applications. We ensure every component undergoes rigorous testing to maintain stability during horizontal transit across factory floors.
Low-friction PTFE or specialised skidding pads are used to reduce the force required for movement. By minimising the coefficient of friction, we reduce the hydraulic pressure needed to initiate the slide.
As heavy lifting specialists, we advocate for heavy load skidding solutions that utilise synchronous jacking units. These units ensure the load remains level during the initial lift to prevent structural stress on the machinery.
Hydraulic Jacking Units
High-pressure hydraulic jacks provide the initial lift to clear the floor surface. These units are often controlled by a central manifold for uniform pressure distribution across all lifting points.
The manifold system prevents erratic movements by regulating the flow of hydraulic fluid to each cylinder simultaneously. This setup is essential when the centre of gravity is offset, as it prevents the load from tilting or slipping during the transition.
We utilise synchronous systems to monitor load position between jacks within 1mm. This level of precision is vital when moving delicate assets like medical imaging equipment or CNC machining centres.
Skid Tracks and Push-Pull Cylinders
The skid track provides a stable, level surface for the machine to travel across. It acts as a rigid foundation that distributes the weight of the asset over a larger floor area to protect factory foundations.
The tracks are often constructed from high-tensile steel to resist bending under extreme point loads. By using interlocking track sections, we can create a continuous path of any length to move machinery across entire facility floors.
Push-pull cylinders provide the motive force by ratcheting along the track beams. This mechanical advantage allows for the controlled movement of massive industrial assets through narrow factory corridors.
For projects requiring specialised equipment, our heavy moving equipment hire service provides the necessary tools for complex internal relocations. This ensures your team has access to the latest jack and slide systems for every lift.
https://silver-knight.co.uk/contact-us/
Engineering and Safety Planning for Heavy Moves
UK manufacturing logistics involve the movement of high-value assets where a single 10mm deviation can result in catastrophic structural failure.
Industrial relocations in the UK often face floor load limits of less than 25kN per square metre.
Moving a 50-tonne CNC machine across an aged factory floor requires more than just raw power.
As heavy lifting specialists, we advocate for rigorous technical site surveys to prevent substrate collapse before any equipment arrives on site.
Every adjective in our planning process is anchored by a concrete technical fact to ensure operational transparency. We don't just describe a move as "heavy"; we define it by its 78-tonne mass and its specific footprint pressure.
Precision is the cornerstone of a successful machinery haulage and relocation service. We measure entry points to within 5mm to ensure our jack and slide systems can navigate tight industrial corridors without incident.
Engineering Calculations and Floor Loading
Point loads under the jacks can exceed 35 tonnes per square foot during the initial lift phase. This pressure often exceeds the capacity of standard 150mm reinforced concrete found in older UK warehouses.
We deploy steel load-spreading mats to distribute the weight across a larger surface area and protect the floor. Our engineers calculate the combined weight of the machine and the 2.5-tonne jack and slide system to prevent overstressing the substrate.
Identifying the center of gravity is a non-negotiable step for every unique machine. We use electronic load cells to confirm the balance point before the skid commences.
Developing Comprehensive RAMS
We provide full Risk Assessment and Method Statements for every skidding operation to meet HSE requirements. These documents serve as the technical blueprint for the entire relocation team.
RAMS include specific exclusion zones and emergency stop procedures to mitigate the risk of hydraulic failure. Crucially, these documents are reviewed by qualified lifting engineers to verify all safety protocols before work commences.
Best practice involves a "dry run" of the control sequence to ensure the 100-tonne capacity jacks respond uniformly. This level of detail ensures that our heavy moving equipment hire service maintains a zero-incident record.
Table of Contents

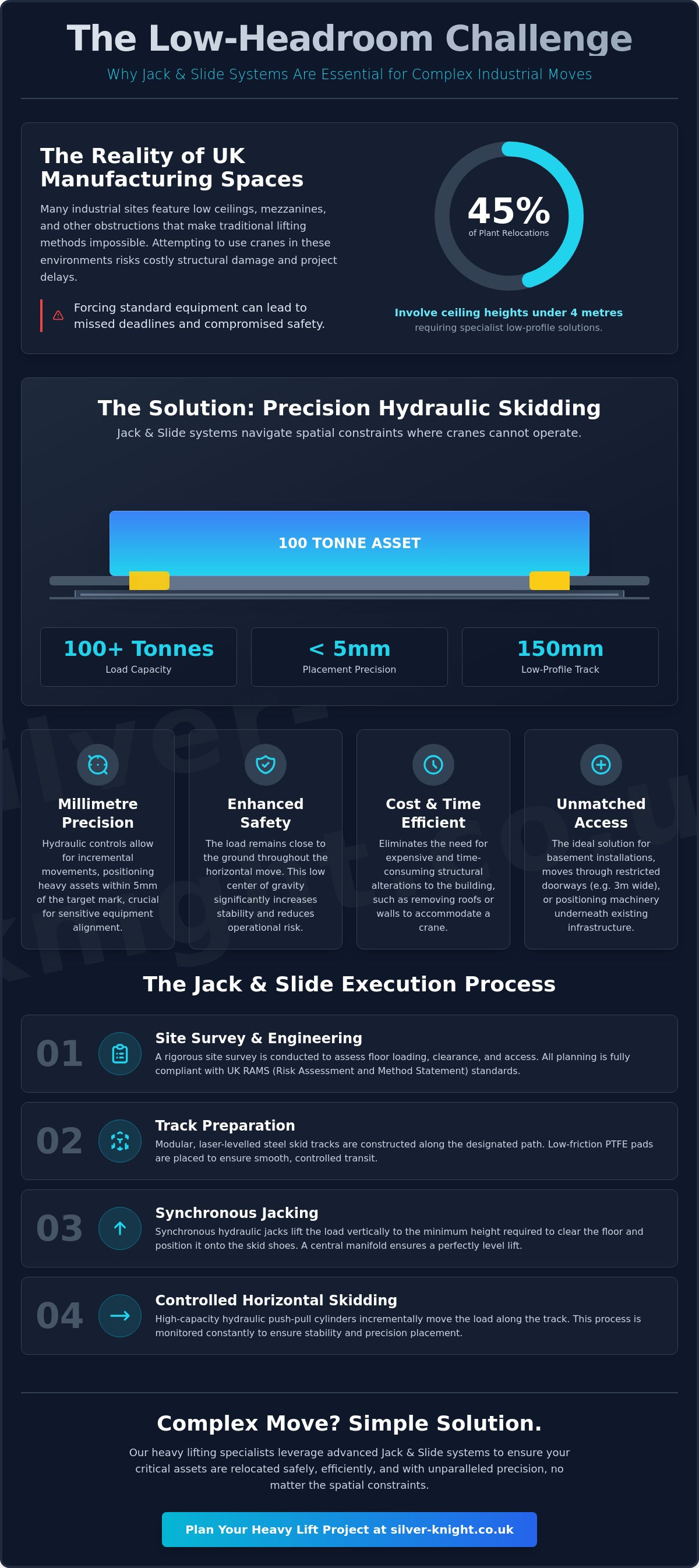

Steps to Execute a Successful Jack and Slide Relocation
Frequently Asked Questions
UK manufacturing output reached £224 billion last year.
Silver Knight supports this growth by managing complex factory relocations for tier-one suppliers.
Many facilities present restricted headroom of less than 3.5 metres, making traditional craneage impossible.
We deploy modular jack and slide systems to navigate heavy plant through these tight tolerances safely.
https://silver-knight.co.uk/contact-us/
Steps to Execute a Successful Jack and Slide Relocation
Preparation begins with the precise levelling of the skid track using laser measurements to ensure a completely flat plane. As heavy lifting specialists, we advocate for using high-grade steel tracks that can support concentrated loads up to 100 tonnes.
The load is gradually raised using synchronous jacks to the minimum required height to clear the track profile. Crucially, this method maintains the centre of gravity far lower than a traditional forklift lift, which is vital for top-heavy machinery.
The skidding phase involves controlled bursts of hydraulic pressure to advance the load along the PTFE-coated tracks. This incremental movement prevents kinetic energy build-up and allows for immediate stops if the path becomes obstructed.
Final positioning is achieved through fine-tuning the push-pull cylinder strokes. If you're planning a complex move, our factory relocation service provides the technical expertise needed for these high-stakes manoeuvres.
Setting the Track and Jacking the Load
Tracks must be perfectly parallel to prevent the load from binding during movement. We use calibrated digital callipers to ensure track spacing remains consistent within a 2mm tolerance across the entire run.
Jacks are positioned at the manufacturer-specified lifting points of the machinery to avoid damaging the internal components or the chassis. Our team verifies these points against the original equipment manufacturer (OEM) manuals before any pressure is applied.
The lift height is typically less than 150mm for safety.
The Skidding and Lowering Phase
Operators monitor hydraulic pressure gauges to ensure consistent movement across all tracks. If a pressure spike occurs, it's often an indicator of track misalignment or debris that requires immediate attention.
Once over the final location, the jacks lower the machine onto its new foundations. This process uses the same synchronous system to ensure the asset remains level throughout the descent.
Precision is maintained within 5mm of the engineering drawings for installation. Best practice dictates a secondary survey of the anchor bolt holes before the jack and slide systems are demobilised from the site.
https://silver-knight.co.uk/contact-us/
Frequently Asked Questions
What are the safety requirements for jack and slide systems
Every project we undertake includes the provision of full RAMS (Risk Assessment and Method Statements) to ensure site-specific hazards are mitigated. We strictly adhere to LOLER (Lifting Operations and Lifting Equipment Regulations) for all hydraulic components in our fleet. Our engineers conduct a pre-lift briefing to confirm all personnel understand the emergency stop protocols.
Can jack and slide systems move 100 tonne loads
Yes, our modular systems are specifically designed to handle individual assets weighing up to 100 tonnes with ease. We've successfully utilised this equipment for the installation of heavy industrial presses where floor loading limits were a primary concern. The tracks effectively spread the load weight, preventing damage to the factory floor substrate.
- ## Specialist Support for Complex Industrial Relocations
- ## Frequently Asked Questions
https://silver-knight.co.uk/contact-us/
Specialist Support for Complex Industrial Relocations
UK manufacturing accounts for £191 billion of national output and requires precise logistics for plant upgrades.
Silver Knight manages these high-value movements using over 180 years of collective industry experience.
Moving heavy machinery within tight factory footprints often prohibits the use of standard overhead cranes.
We deploy specialized jack and slide systems to move assets up to 100 tonnes with millimetre precision.
Silver Knight Heavy Lifting Expertise
We provide operated lifting equipment rental for complex factory plant relocations across the North of England and the Midlands. Our teams are trained in the use of specialized heavy moving equipment including Versa-Lift units and hydraulic gantry systems.
Crucially, every project is managed by a dedicated supervisor to ensure safety and compliance with LOLER regulations. Our technicians achieve final placement within a 5mm tolerance to align with existing production lines.
We maintain a fleet of Iron Fairy cranes and hydraulic systems to support diverse industrial environments. As heavy lifting specialists, we advocate for the integration of jack and slide systems when ceiling heights are restricted to under 4 metres.
National and International Relocation Services
Our factory relocation services include full project management from the initial site survey to the final bolt-down. We manage the entire process starting with professional machinery dismantle services to prepare assets for transit.
Best practice dictates that international machinery transport for projects spanning the US and Asia requires rigorous export packing. We coordinate global logistics to ensure sensitive industrial assets arrive at their destination without calibration loss.
Our nationwide coverage ensures that technical expertise is available for 24 hour emergency plant removals. We advocate for the use of jack and slide systems as the safest method for high-value assets exceeding £500,000 in value.
https://silver-knight.co.uk/contact-us/
Frequently Asked Questions
What are the benefits of jack and slide systems
These systems allow for the movement of loads up to 100 tonnes in areas where overhead clearance is limited. We use them to ensure floor loading pressures remain within the structural limits of the factory slab. Every operation includes full RAMS to document the safety protocols used during the skid.
How accurate is the positioning with skidding equipment
Our technicians achieve final placement within a 5mm tolerance to align with existing production lines. This precision is essential for CNC machinery and high-speed bottling plants. We provide detailed method statements for all precision positioning projects involving high-value assets.
Do you provide nationwide coverage for heavy moves
We offer specialist lifting services across the entire United Kingdom from our strategic hubs. Our fleet of Versa-Lifts and gantry systems is mobile and ready for rapid deployment to any industrial site. We have successfully completed over 500 major factory relocations involving complex heavy lifts.
Optimising Heavy Relocations with Precision Engineering
Crucially, successful industrial moves depend on the integration of hydraulic power and meticulous engineering. As heavy lifting specialists, we advocate for the use of jack and slide systems to maintain a low profile while moving assets up to 100 tonnes through restricted access areas.
Best practice dictates that every project receives full RAMS to mitigate site-specific risks. Our team utilizes 180 years of collective experience to ensure every millimetre of movement is controlled and documented within 5mm tolerances.
We've delivered complex relocations for UK manufacturing plants using specialised equipment like iron fairy units for precise positioning. This technical approach eliminates the need for oversized cranes in tight internal environments and protects the structural integrity of your facility.
Precision hydraulic skidding ensures that even the most sensitive equipment is relocated without vibration or impact damage. We don't leave site safety to chance during high value asset transitions.
https://silver-knight.co.uk/contact-us/
Your heavy machinery is in safe hands with a team providing full RAMS for every project.
https://silver-knight.co.uk/contact-us/
Frequently Asked Questions
How much weight can a jack and slide system move
Standard jack and slide systems move loads between 100 and 500 tonnes depending on the rail configuration. As heavy lifting specialists, we advocate for modular setups that can be expanded to handle 1,000 tonne industrial units.
Our engineers provide full RAMS for every 100 tonne move to ensure structural integrity's maintained throughout the project.
Is a jack and slide system safer than a crane
Jack and slide systems provide a safer alternative to cranes in low-headroom environments because they maintain a low centre of gravity. Crucially, this method eliminates the risk of load swing when positioning 40 tonne CNC machines in tight spaces.
Every operation's backed by comprehensive site surveys to mitigate risks specific to UK factory layouts.
Do I need a special floor for a skidding system
Best practice requires a level surface, though we use steel plates to distribute weight on floors with lower load-bearing capacities. We conduct floor testing to confirm the 150mm concrete slab can support the concentrated pressure of a 60 tonne power generator.
This preparation ensures the skidding system operates without damaging the existing factory infrastructure.
How long does a typical jack and slide operation take
A typical operation to move a 30 tonne injection moulding machine takes approximately 6 hours from initial jacking to final positioning. Our technicians move the load at a controlled rate of 1 metre per minute to ensure maximum safety.
We include full RAMS as standard to manage the timeline and safety protocols for these complex factory relocations.
What is the precision of a hydraulic skidding system
Hydraulic jack and slide systems offer exceptional accuracy, allowing our teams to position heavy loads within 5mm of specified markings. This precision's essential for the installation of 15 tonne aerospace components that require perfect alignment with fixed floor bolts.
Using incremental hydraulic pulses ensures the machinery sits exactly where the site plans dictate.
Can jack and slide systems be used outdoors
These systems operate effectively outdoors provided the terrain's reinforced with heavy-duty steel road plates. We used this technique in 2022 to move an 85 tonne transformer across a gravel substation where crane access was blocked by gantry structures.
Best practice involves constant monitoring of track levels to prevent any deviation during the external transit.
Are jack and slide systems compatible with all machinery
Jack and slide systems are compatible with any industrial asset that possesses structural jacking points or a flat, rigid base. We often use these systems alongside our Versalift units to transfer 50 tonne printing presses from the delivery vehicle to the production line.
Crucially, we assess every machine's structural integrity before deployment to ensure the load remains stable during the slide.
